Cisco Webex Calling integrated into Microsoft Teams, Hands On

Cisco Webex Calling is Cisco’s cloud-based phone system integrated into Webex.

Webex calling has 3 PSTN connectivity options

  • Cisco Calling plans, direct from Cisco
  • Calling plans from 30 Webex Calling service providers worldwide
  • Bring your own Carrier via Local Gateway

There is a specific Webex Calling app for Android, iOS, Mac, Windows Desktop specifically for phone/calling, but users can also use the normal Webex App for calling.

Interestingly there is also a Cisco Webex Calling integration for Microsoft Teams. In this blog I get hands-on so you can understand what it is and isn’t.

Cisco Webex Calling Microsoft Teams Integration Hands-On

Many UCaaS providers now have integrations to Microsoft Teams to allow users to use Microsoft Teams, but leverage the UCaaS provider for the PSTN connectivity. Most of these UCaaS integrations rely on the Teams user having the Teams Phone System Licence and leveraging direct routing to allow the UCaaS provider to route calls to and from Teams.

A number of UCaaS providers leverage call2teams, a provider who can bridge between the UCaaS providers system/APIs and Microsoft Teams Direct Routing. In this model, the teams user gets a full native PSTN calling experience across all teams clients. To teams, it’s just like any other direct routing setup.

Cisco Webex Calling integration for Teams is quite different. It’s actually a Webex dialler app for Teams, available right in the Teams app store, that “replaces” the Microsoft Calling “app”/feature. The Webex dialer app doesn’t actually manage the audio of the call, all the app is doing is launching the Webex app to make the call, which must also be installed on the machine.

Thanks to VanillaIP, a leading UK cloud comms provider who are also a BroadSoft and Cisco Webex Calling plan partner, who were kind enough to give me a trial Webex account with calling enabled via them for testing.

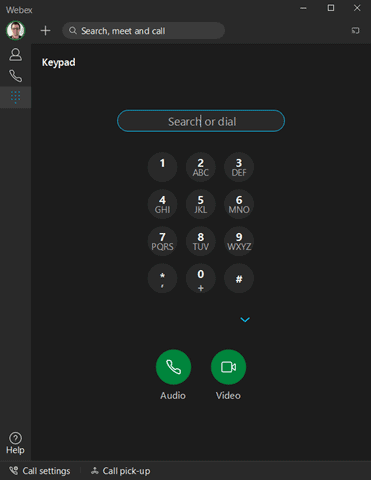

First I downloaded the normal Webex app from https://www.webex.com/downloads.html and signed in

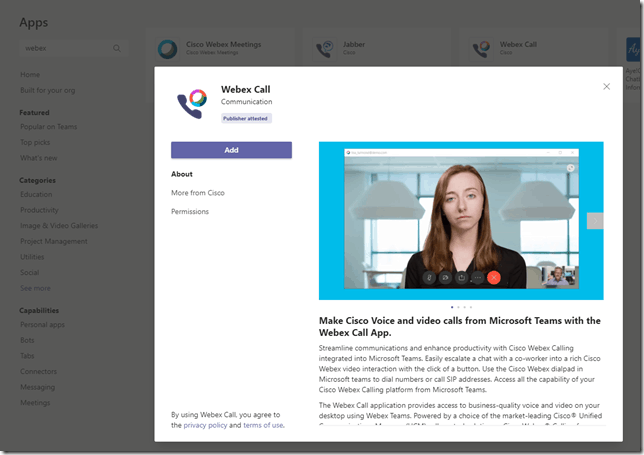

Then in Microsoft Teams, in the Teams app store, I installed “Webex Call”


Cisco also have a Jabber call app, which is the same concept but for Jabber on Cisco Unified Communications Manager (their on-premises PBX)

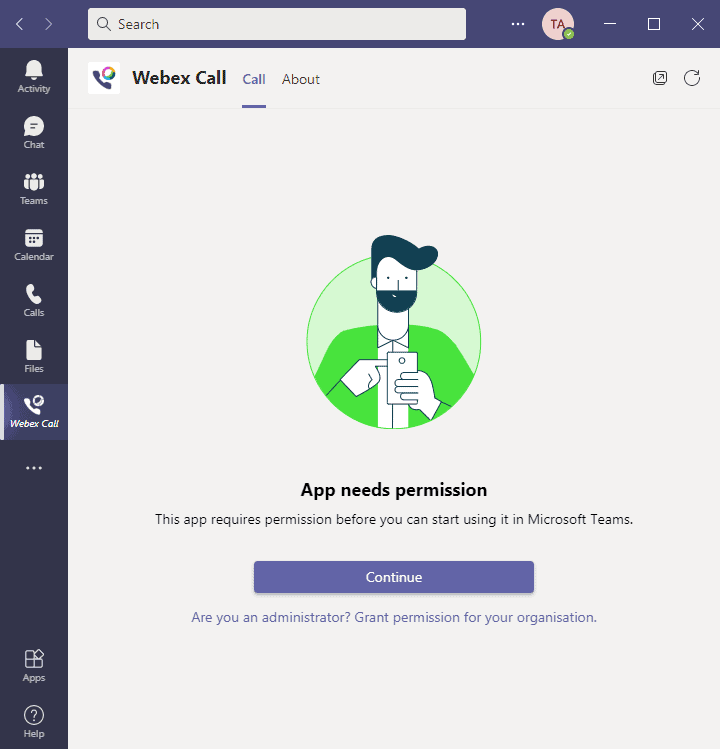

The app required Office 365 administrator approval, which I was surprised by, as everything the Webex Call app is doing seems to be local to the machine.

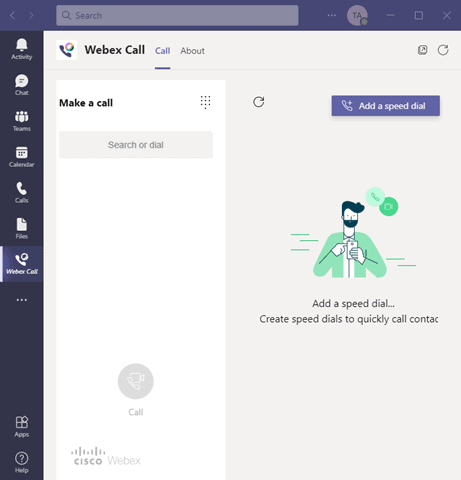

Once approved it looked like this:


Note, if you were going down this route you might choose to hide/unpin the native Calls “app” on the left rail (though this can also be used for internal Teams VoIP calling, so you might want both).

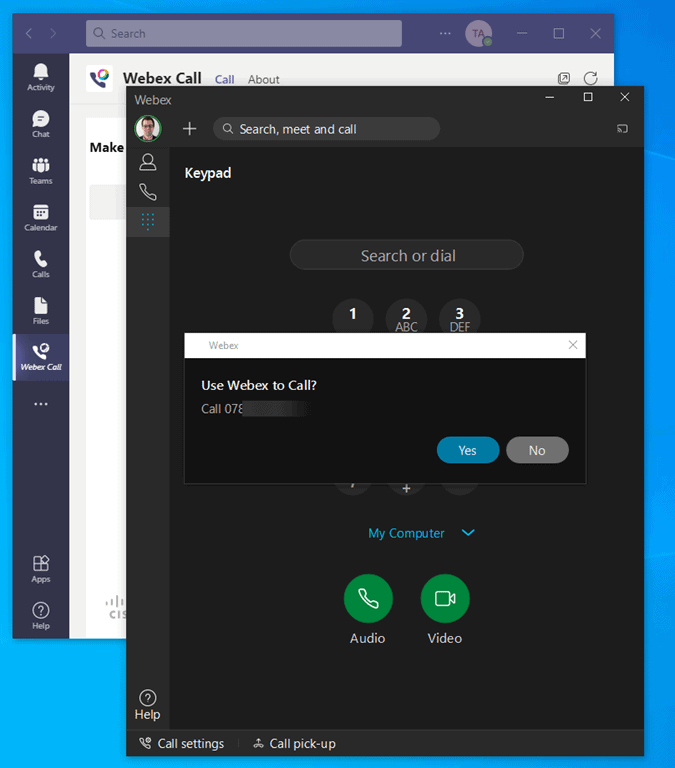

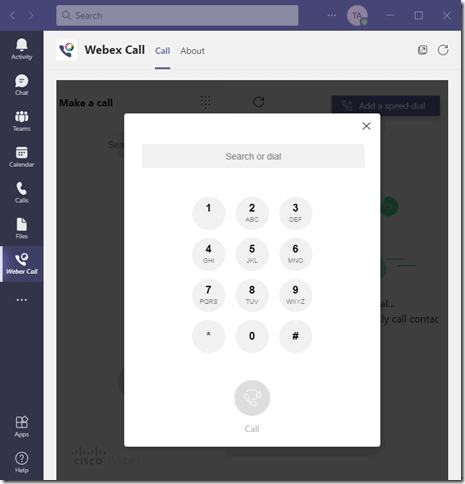

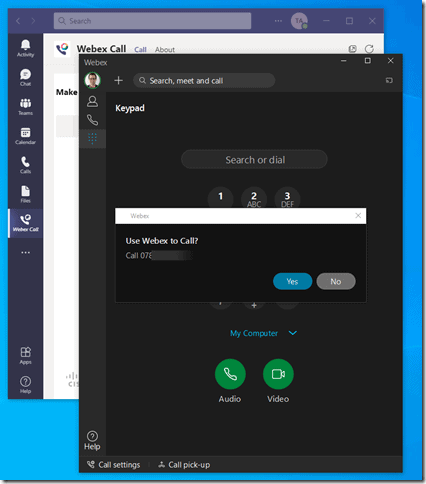

Entering a number in Webex Call and clicking call pop’s the Webex app into focus in front of Teams

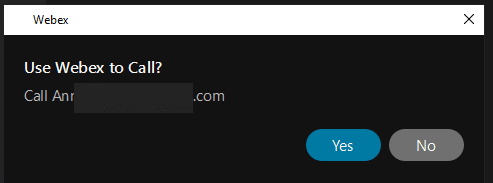

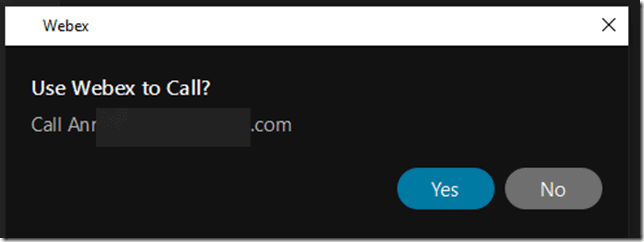

Click Yes and Webex is making the PSTN call

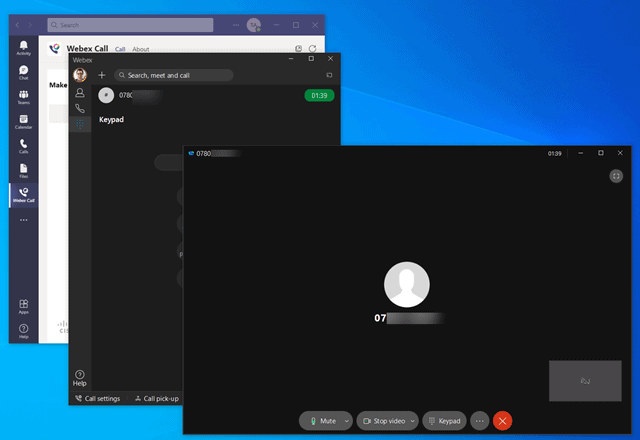

All Call controls are in the Webex client, not Teams or the Webex Call app. Teams has no understanding you are in a Webex PSTN call, your Teams presence will not change to “in a call”.


I guess Cisco might make the case that the native Teams phone app also pops a new window for your call.

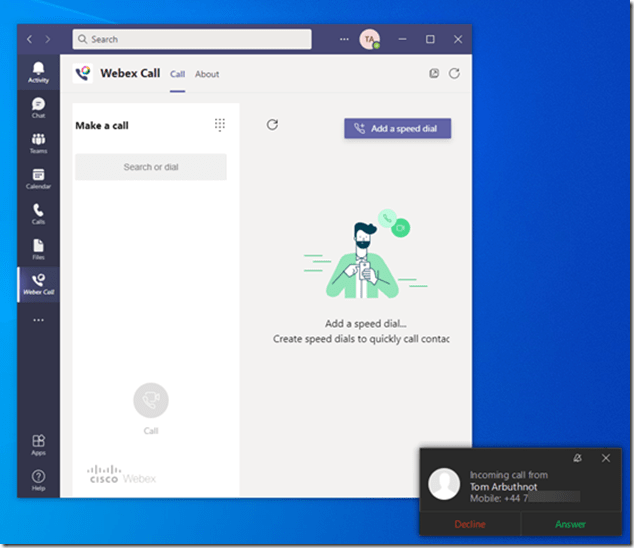

As you would expect, incoming calls are direct to the Webex client and Teams doesn’t know about them.

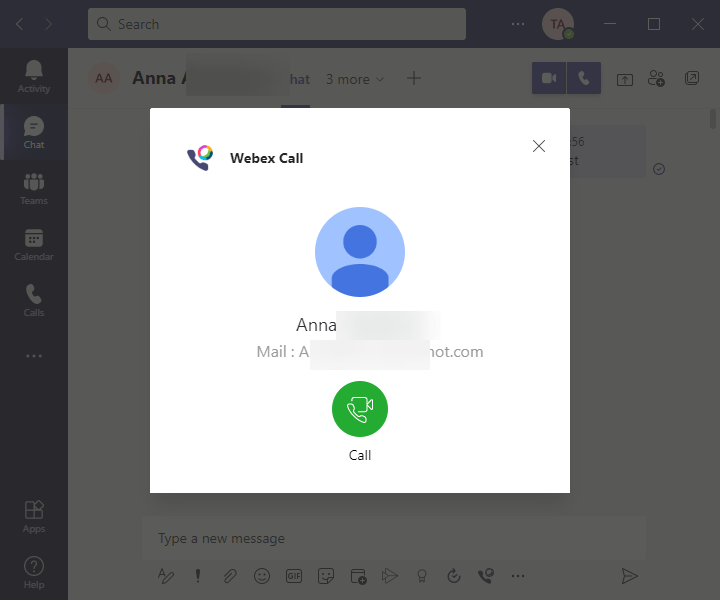

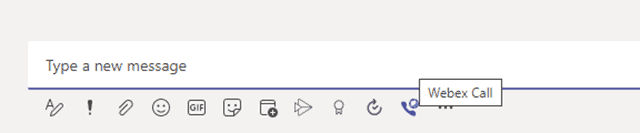

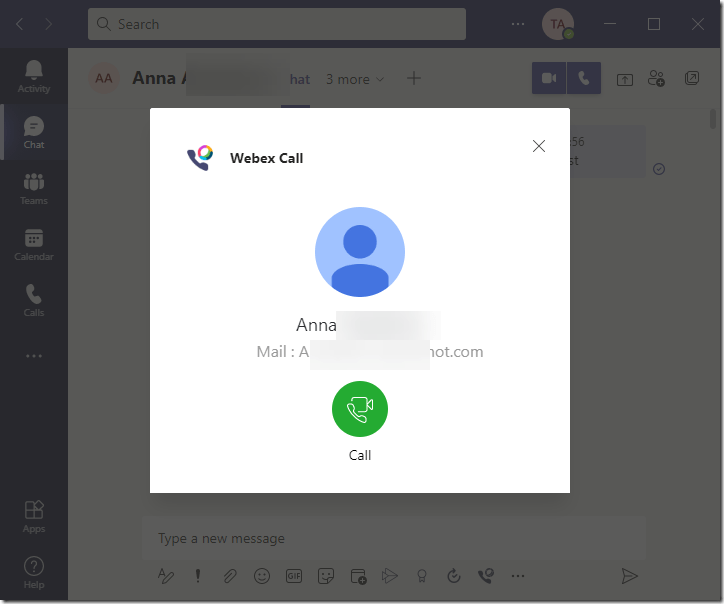

It also installs a link in the apps for chat that fires Webex for a SIP URI call

I guess this would work if the email matched another Webex account, or if the contact I was chatting with had a PSTN number listed it would give the option to dial that.




Running it in the Teams Web app actually works too, what the app is doing is just firing a link to webextel:+123123123 and then the browser redirects that to the installed Webex app. Obviously, you need the Webex desktop app installed and signed in on the PC.

Teams Mobile

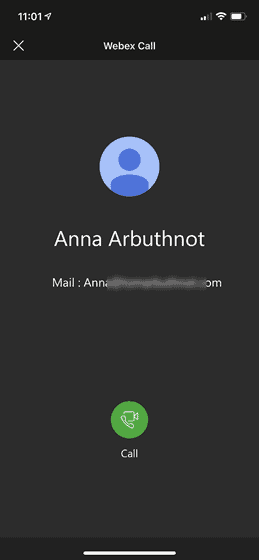

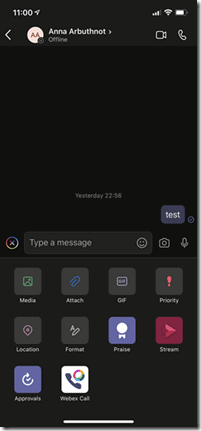

On Teams Mobile app, iOS and Android, there is no Webex PSTN dialler/dial pad, but for people you are having a private chat with, you can click the app to again launch the Webex app on the mobile. Note you need Webex installed on the mobile.

image  image

Of course, you can install the Webex app on mobile to make and receive PSTN calls too, it just has nothing to do with teams in that case.

Thoughts

Cisco would position the benefits of this approach as being that you don’t need a Microsoft Phone System licence (£6 PUPM list)  and that you can pin the Webex call app on the left rail to let the teams user make phone calls, however, all the app is really doing is firing a link to launch the Webex app.

Webex Calling from VanillaIP is £4.16 per user per month for the base user license with access to all common PBX functionality via the Broadworks soft switch.

I would say, if you are going down the Webex calling route, it would be just as easy to train your users to go to Webex app to make and receive their PSTN calls.

About the author

Tom Arbuthnot

A Microsoft MVP and Microsoft Certified Master, Tom Arbuthnot is Principal Solutions Architect at Microsoft Collaboration specialists Modality Systems.

Tom stays up to date with industry developments and shares news and his opinions on his blog, Microsoft Teams Podcast and email list. He is a regular speaker at events around the world.

4 comments

Leave a Reply

This site uses Akismet to reduce spam. Learn how your comment data is processed.

  • Hi Tom… If the MS365 Teams admin finds the WEBEX call app in the Office.com/Teams admin centre section for managing apps and gives it further permissions, not simply the permission to exist in MS Teams app space, then the search feature in Webex Call would interrogate the AZURE AD to find records of Office & Mobile phone numbers for a Teams/365 contact.
    This further enhances the Webex Call feature for dialling within the MS Teams pane of glass. I can send you a guide of you would like?

    • Sure. Please ping them over. I’m on LinkedIn and Twitter if you don’t have my details.

      Thanks

  • Hi, if VanillaIP are using BroadWorks it’s not Webex Calling, it’s Webex for BroadWorks. BroadWorks is (partner hosted) whereas Webex Calling is specifically the Cisco brand name for the former BroadCloud (Cisco hosted) product. The Cisco Webex app can be the calling client for BroadWorks, Webex Calling, Cisco UCM, Cisco HCS & Cisco UCM-Cloud. Thanks, David.
